Schoenhut Patents
The following are the Schoenhut patents I have identified so far. If you can
identify more for me, let me know so I can put them here. I have included photos
of example pieces. Click on the thumbnails to see enlarged image.
| Schoenhut
Patents and the Produced Toys |
| |
 |
 |
 |
 |

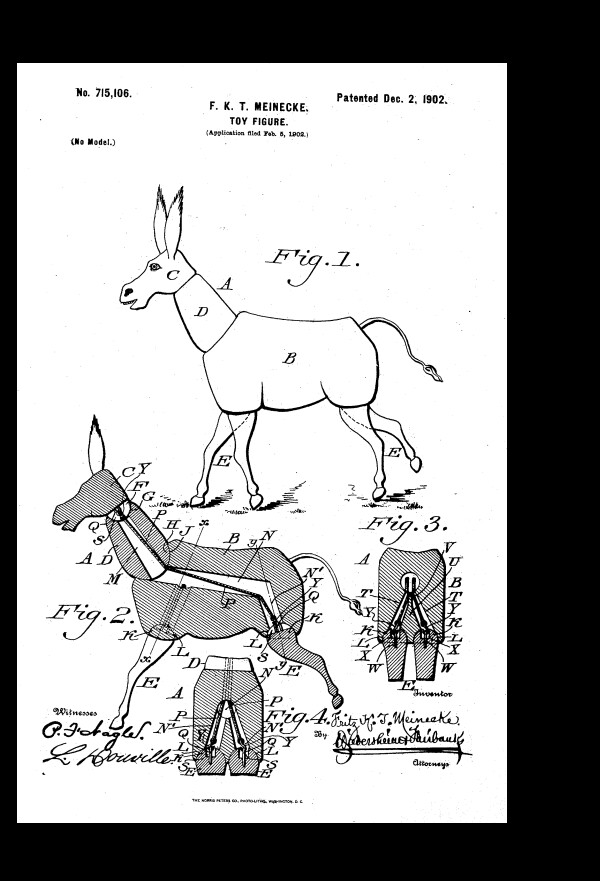

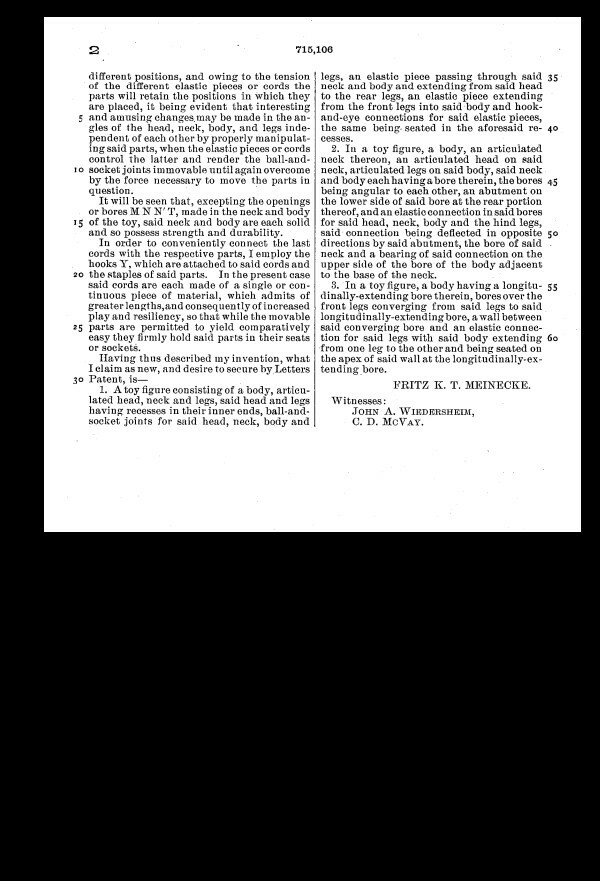

Utility
Patent 715,106 from Dec 2, 1902 protects the ball and
sockets joint construction for their circus toys. |
 |
 |
 |
 |
 |

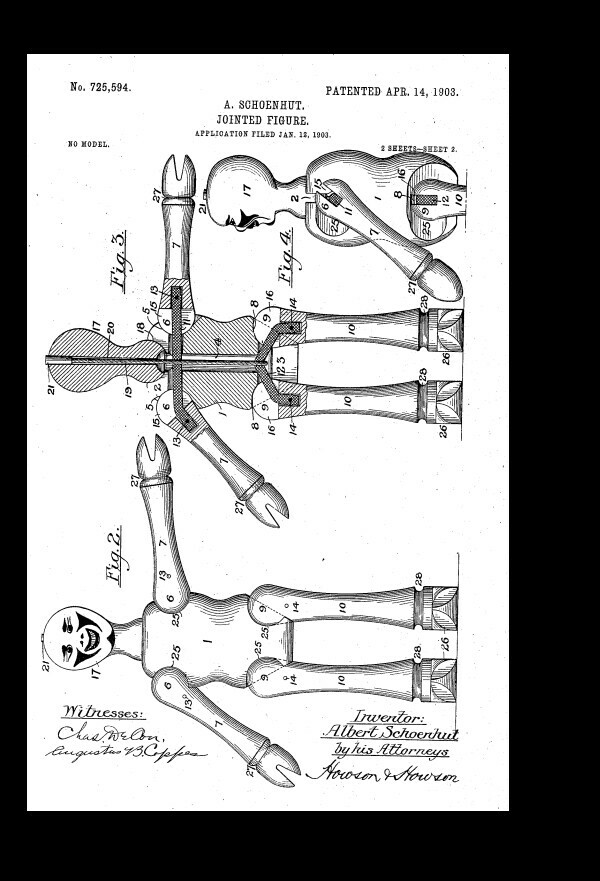

Utility
Patent 725,594 from April 14, 1903 applied for on Jan 18, 1903 protects
the jointed
arrangement of the personnel. The strings of rubber cords are recorded. |
 |
 |
 |
 |
 |
| Utility
Patent 806,008 for April 16, 1904 improves upon the ball and socket
joint construction. |
| |
 |
 |
 |
|

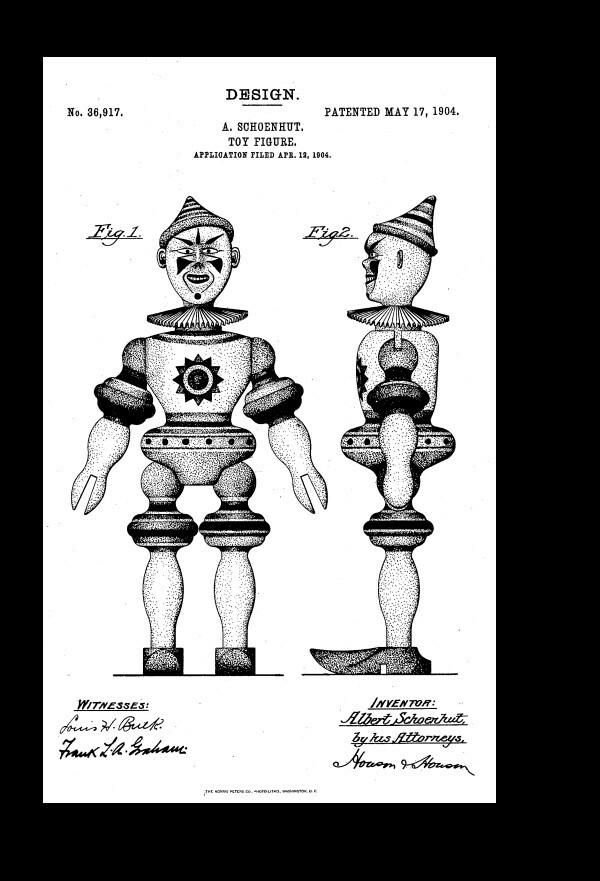

Schoenhut
Design Patent D36,917 from May 17, 1904 depicts the very rare all wooden
clown that is known only on a ball. This toy clown must not have
been
produced in great numbers and perhaps never as a stand alone. |
 |
 |
 |
 |
 |
|

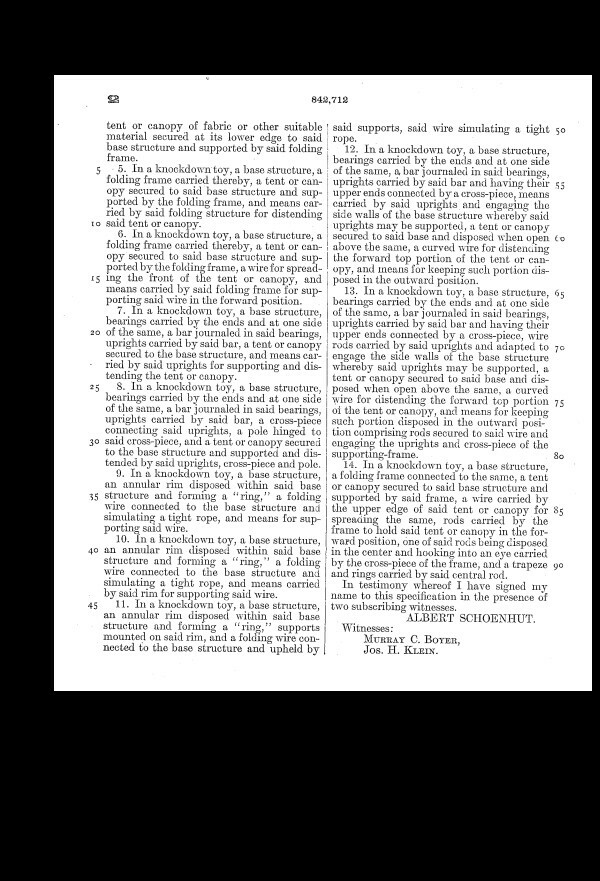

Schoenhut's Utility
Patent 842,712 from Jan 29, 1907 protects its design for an improvement
on
the "Knockdown Toy Structure". This design is for the canvas
tent that easily erects and stores within its base. |
 |
 |
 |
 |
 |

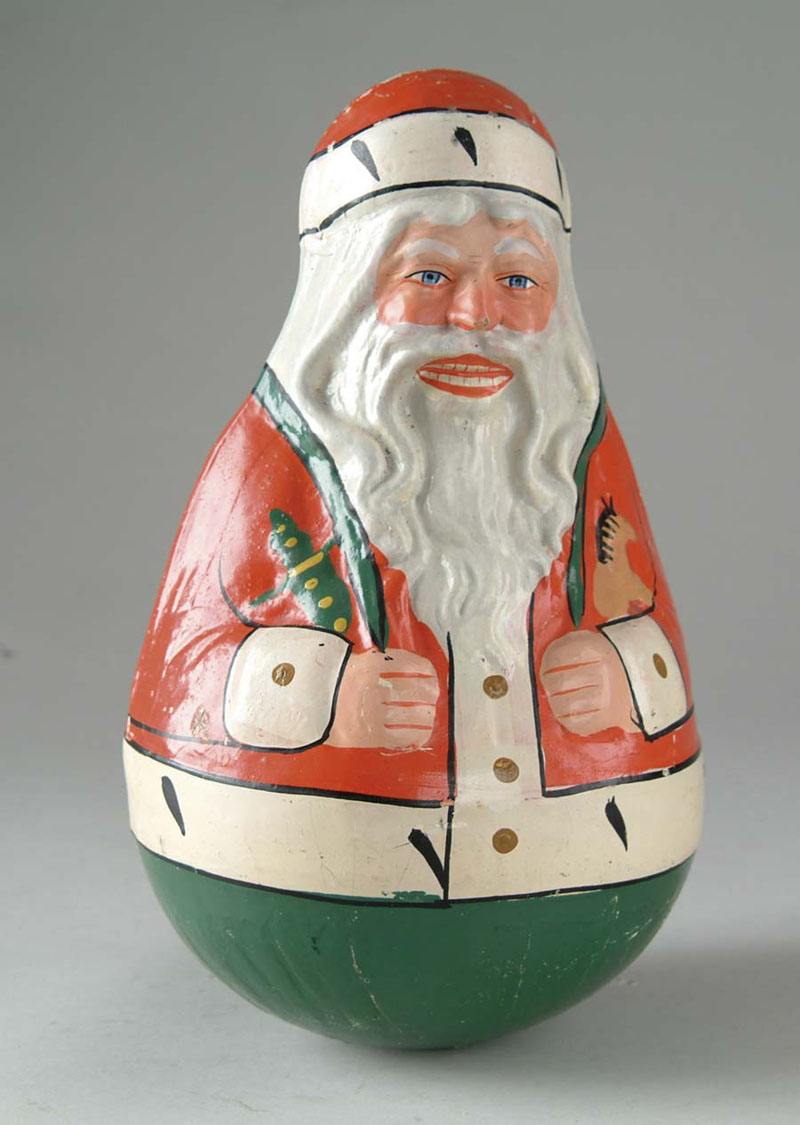

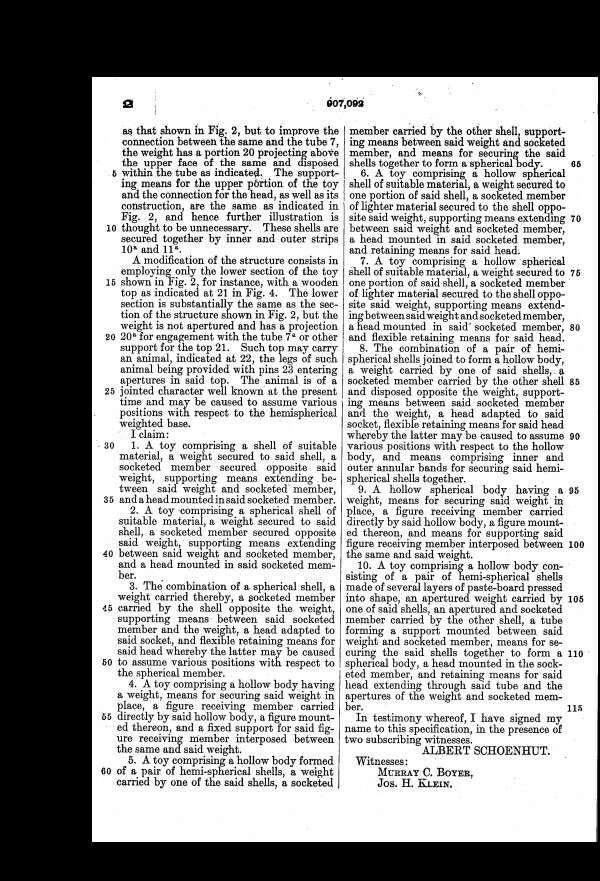

Schoenhut's
Roly-Poly design that patents the construction of the toy so the weights
that return the toy to its upright position will not come loose. This
Utility Patent 907,092 from Dec 15, 1908 |
|
